E1 to V.35 Protocol Converter

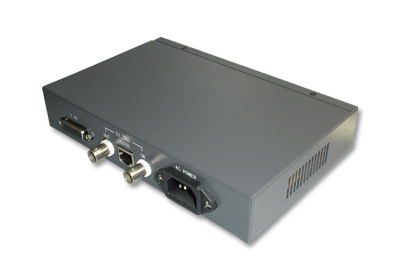

 E1 to V.35 Protocol Converter

E1 to V.35 Protocol Converter pdf

E1 to V.35 protocol converter provides physical conversion between ITU G.703 standard E1 interface and V.35 Interface. Equipments with V.35 interface but without G.703 interface such router and multiplexer is able to transmit data via E1 multiplexer or E1 channel with E1-V.35 protocol converter. When there is redundant E1 channel, the transmitting equipment is with V.35 output port and the mode of its data port is DCE, E1-V.35 protocol converter can be connected with DTE or DCE data transmitting equipment.

E1 to V.35 protocol converter Features
Multiple clock selection: internal clock, V.35 line clock and E1 recovery clock
Realize 31 random time slots
With function of pseudo-random code testing
V.35 interface supports hot-plug and DTE and DCE interconnection
With RMA alarm function
Humidity: 5%-90% non-condensing
The equipment supports super terminal control device with Console port. (Management is available)
Internal power supply and external power supply are available
Support local/remote loop test
LED indicator for easy understanding of equipment working status

E1 to V.35 protocol converter Parameter
Type of Interface: E1 and V.35
Code speed of the interface: 2.048Mbit/s±50ppm
Impedance of E1 interface: 75 Ohm unbalanced and 120 Ohm balanced
Power supply: AC 180V~240V
DC-36V~ -72V
DC+20V~+36V
Power consumption: <5W
Working temperature: 0~50℃
Store temperature: -40~70℃
Weight:1.34kg
Package Dimension: Internal Power Supply: 28.3cm*28cm*7.5cm
