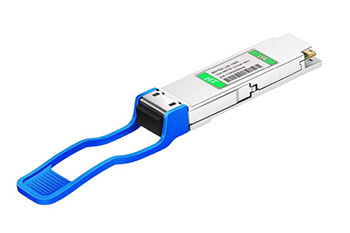

The QSFP28 LR4 stands as a hot-pluggable, full-duplex optical module that aligns with the IEEE 802.3ba standard. Tailored for extended-range transmission in 100G Ethernet applications, it operates within the 1295nm to 1310nm wavelength range. Utilizing single-mode fiber jumpers, it achieves an impressive transmission distance of up to 10 kilometers.
This optical marvel, the 100G QSFP28 LR4 module, adeptly transforms four 25Gbps electrical signals into four LAN WDM optical signals, skillfully multiplexing them into a single channel for seamless transmission. At the receiving end, the module deftly demultiplexes the 100G optical input signal into four LAN WDM optical signals, subsequently converting them into four electrical output signals.
Huihongfiber upholds a commitment to manufacturing QSFP28 LR4 optical modules in strict adherence to industry standards, garnering recognition from a plethora of satisfied customers. These modules seamlessly integrate with an array of switch brands in the market, including Cisco, Juniper, Arista, Brocade, Dell, and others. Furthermore, the QSFP28 LR4 optical module aligns with QSFP28 MSA, IEEE 802.3ba 100GBASE-LR4, and IEEE 802.3bm CAUI-4 standards.
Enabling impressive 100GBase-LR4 throughput, the QSFP28 module effortlessly extends up to 10km over a standard pair of single-mode fibers (SMF) equipped with duplex LC connectors. Its compliance with IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, SFF-8665, and SFF-8636 standards is complemented by digital diagnostics functions accessible via the I2C interface, as specified by the QSFP28 MSA. With user-friendly installation and hot-swappable capability, this versatile transceiver finds a perfect fit in a diverse range of applications, including 100G telecom connections, data centers, high-performance computing networks, enterprise core and distribution layers, as well as campus networks.
Specifications
Cisco Compatible |
QSFP-100G-LR4-S |
Vendor Name |
Huihongfiber |
Form Factor |
QSFP28 |
Max Data Rate |
103.125Gbps (4x 25.78Gbps) |
Wavelength |
1310nm |
Max Cable Distance |
10km |
Connector |
Duplex LC |
Media |
SMF |
Transmitter Type |
4 x LAN WDM EML |
Receiver Type |
PIN |
TX Power |
-4.3~4.5dBm |
Minimum Receiver Power |
-10.6dBm |
Powerbudget |
6.3dB |
Receiver Overload |
4.5dBm |
Power Consumption |
<=3.5W |
Extinction Ratio |
>4dB |
DDM/DOM |
Supported |
Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
Modulation Format |
NRZ |
CDR (Clock and Data Recovery) |
TX & RX Built-in CDR |
Protocols |
IEEE 802.3ba 100GBASE-LR4, IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636 |
Warranty |
5 Years |
